Equilibar has partnered with a high quality US-based manufacturer with 30 years of experience designing top performance pressure controls. Series 3000 regulators are machined in the US , provide excellent performance and have a generous warranty support.
Series 3000 Series Details
The Series 3000 pressure regulator is intended for precision low-flow applications at pressure ranges from 500 psig / 34 bar(g) to 10,000 psig / 689 bar(g). Designed for inert gases, these regulators offer self-venting through the bonnet for convenient control. Many customers use these regulators to provide adjustable pilot pressure setpoint for Equilibar dome-loaded back pressure regulators.
Series 3000 regulators are normally in stock for quick delivery. They are available in stainless steel or brass.
Request a Quote Download Brochure
| Feature | Details |
|---|---|
| Control mode | Pressure reducing with self venting. Brass units vent through bonnet. Stainless steel units have a captured vent. |
| Outlet pressure ranges | 5 – 250 psig / .34 – 17.2 bar(g) |
| 5 – 500 psig / .34 – 34.5 bar(g) | |
| 5 – 1000 psig .34 – 68.9 bar(g) | |
| 10 – 1500 psig / .69 – 103 bar(g) | |
| 15 – 2500 psig / 1 – 172 bar(g) | |
| 25 – 4000 psig / 1.7 – 275 bar(g) | |
| 50 – 6000 psig / 3.4 – 414 bar(g) | |
| 100 – 10,000 psig / 6.9 – 689 bar(g) | |
| Max inlet pressure | 6000 psig / 414 bar(g) (Brass Units) |
| 10,000 psig / 689 bar(g) (SS Units) | |
| Cv | 0.06 |
| Body material | Brass (SAE 360) or 316L SS |
| Bonnet material | Brass (SAE 360) or 303 SS, 316L SS |
| Other Wetted parts | 316L SS |
| Seals | Buna-N (Brass Units) Viton-A (SS Units) |
| Valve seat | Vespel |
| Porting | 1/4″ NPT (2 inlet / 2 outlet) |
| Dimensions | 2.12″ diameter x 7″ high [53.85 mm diameter x 177.8 mm high] |
Request a QuoteDownload Brochure
Contact our engineers to discuss your application.
Learn more:

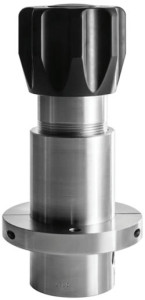

The Stainless Steel 316 version of Equilibar’s Series 3000, shown with a mounting bracket.
A dimensional drawing of the Series 3000 Regulator. Captured vent available on SS model only.
