SDO6 Single Use Valve
| Port Sizes: |
|
||||
| Max Pressure (Std Body Mat’l) |
|
||||
| Body Material (Standard): |
|
||||
| Max CV: |
|
||||
| Key Applications: |
|
SDO6 Single Use Valve
The Equilibar® SDO6 valve is a single use back pressure regulator (BPR) with 3/4″ hose barb fittings and a Cv range between 1E-03 and 4.0. It controls pressure at its inlet up to 60 psig / 4 bar(g) with millibar sensitivity.
SD Series Single Use Back Pressure Regulators
Equilibar SD Series Single Use Back Pressure Regulators are award-winning valves specifically designed for single use technology (SUT) and hybrid systems in the biopharmaceutical industry. They can be used to regulate pressure or be set up for use in closed loop flow control applications.
Like the other Equilibar back pressure regulators, the SD Series features ultra sensitive diaphragm-operated back pressure technology capable of controlling pressure with high precision over a wide range of flows. The pilot-controlled, dome loaded design will control the system pressure in a precise 1 to 1 relationship with the pressure applied to the dome. This pilot pressure may be provided by a manually adjustable spring loaded regulator or by an electronic pressure regulator for accurate computer control.
The flexible membrane diaphragm is the only moving part and it instantly responds to changes in the system to accurately maintain the pressure at the desired setpoint. The SD series is a revolutionary design in single use pressure control, going above and beyond the performance of the single use pinch valve.

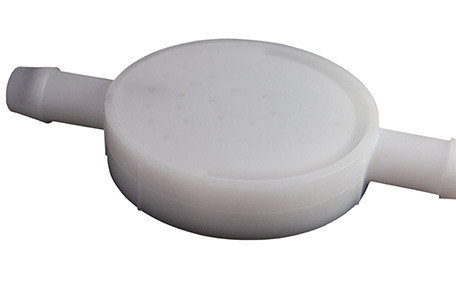

The SD Series BPR is manufactured using USP Class VI polymers and stainless steel. The consumable valve body is made of polymer and inserted into a permanent stainless steel cradle with wing nut closure for quick and easy assembly. The consumable valve body is assembled and bagged in an ISO 7 clean room. Each batch is tested for conformance to USP 788 and USP 85. A full certification package is included with every order.
Contact an application engineer to discuss your single use system application.
SDO6 Single Use Valve
How the Equilibar SDO Valve works
SDO6 Single Use Valve
- Tangential flow filtration
- Bioreactor headspace control
- Chromatography pressure control
- Disck stack centrifuge control
SDO6 Single Use Valve
Weight:
6 Lbs / 2.7 Kg
Dimensions:
Dim A: 7.2in / 183mm
Dim B: 1.8in / 46mm
Fitting/Threads:
3/4″ hose barb fitting
SDO6 Single Use Valve
