GSD8 General Service Back Pressure Regulator | Equilibar

3D Model SS316: Click arrow to load. Double rectangle for full screen.

GSD8 General Service Back Pressure Regulator

Port Sizes:
1"
Max Pressure (Std Body Mat’l)
150 psig / 10 bar(g)
Body Material (Standard):
Stainless Steel 316/316L
Body Material (Optional):
Hastelloy C276, Monel, Anodized Aluminum, PVC, PEEK, PTFE or other custom materials
Max CV:
8.5
Key Applications:
Product Description

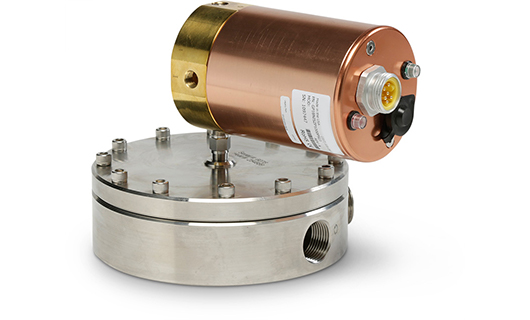

GSD6 General Service Back Pressure Regulator

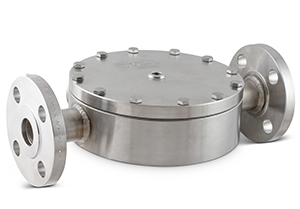

GSD8 General Service Back Pressure Regulator

The GSD8 is the largest of the GS Series with 1″ ports and is useful in low pressure applications such as tank blanketing, tank padding, and inert gas pressure control used to shield a welding process. Click on the “Applications” tab to see other common applications for the GS back pressure regulator.

GS Series

The GS Series back pressure regulators are used for gas, liquid or mixed phase fluid control and are ideally sized for pilot plant or manufacturing scale applications. They range in port size from 1/4″ to 1″.

Back pressure regulators control their inlet pressure to regulate the upstream process by opening up only as much as necessary to hold back the desired pressure at the inlet.

The GS design uses Equilibar’s patented multiple orifice with direct sealing diaphragm technology to control back pressure with great accuracy even where high temperatures, aggressive chemicals, mixed gas/liquid phase media, or other demanding conditions exist.

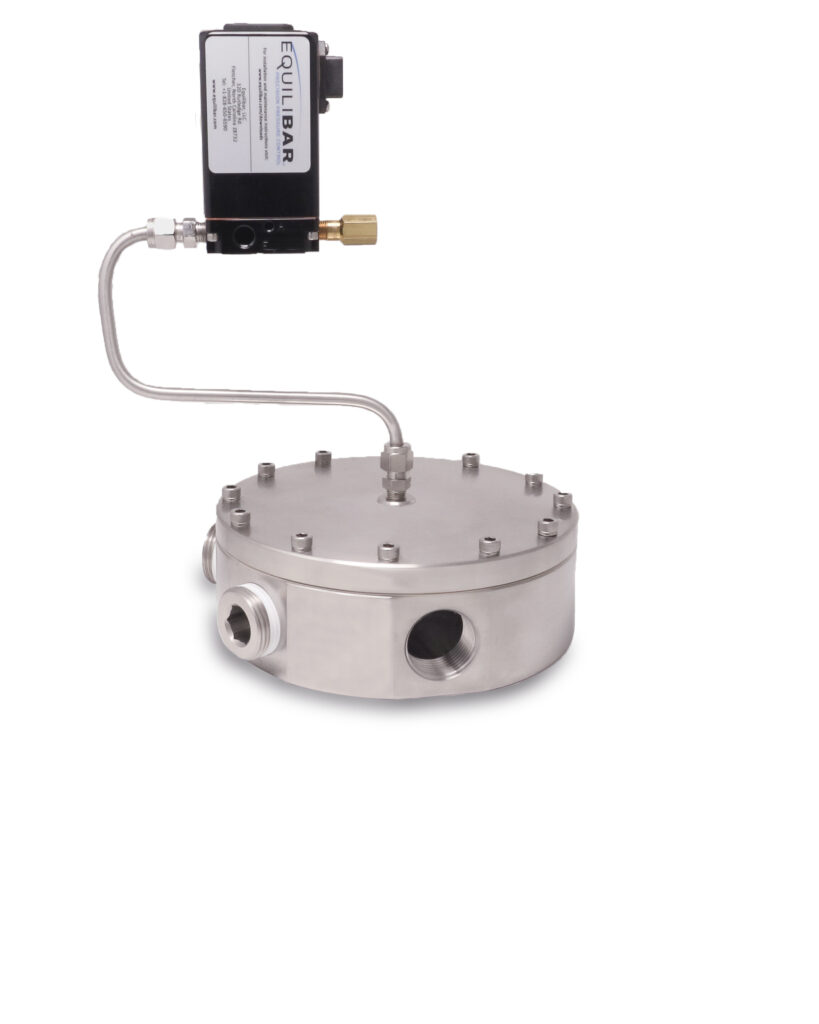

Equilibar GS Series units are 1:1 dome-loaded, meaning that a fluid ‘pilot’ pressure (usually inert gas or air) must be supplied to the dome of the BPR equal to the desired inlet setpoint. This pilot pressure can be supplied by a manual pressure regulator or by an electronic pressure regulator for computer automation.

Contact an Equilibar application engineer with questions or to discuss your specific process requirements.

Videos
GSD6 General Service Back Pressure Regulator

GSD8 General Service Back Pressure Regulator

Control the Flow of a Pump With a Back Pressure Regulator

How Equilibar Back Pressure Regulator Works

Downloads
Applications
Additional Specs
GSD6 General Service Back Pressure Regulator

GSD8 General Service Back Pressure Regulator

Weight:

21.2 lbs (9.62 kg)(SS); 4.9 lbs (2.23 kg)(PVC)

Dimensions:

Dimensional Sketch of GS Series Back Pressure RegulatorMetal Models
DIM A – 7.00 in (178 mm)
DIM B – 2.50 in (64 mm)
Polymer Models
DIM A – 7.25 in (184 mm)
DIM B – 2.93 in (74 mm)
PTFE Models
DIM A – 7.25 in (184 mm)
DIM B – 3.33 in (85 mm)

Fitting/Threads:

Standard: NPT
Optional: BSPP; Swagelok VCO®; Swagelok VCR®; 150# Flange; 300# Flange; SAE; Tube Stub; custom

How It Works
GSD6 General Service Back Pressure Regulator

GSD8 General Service Back Pressure Regulator
